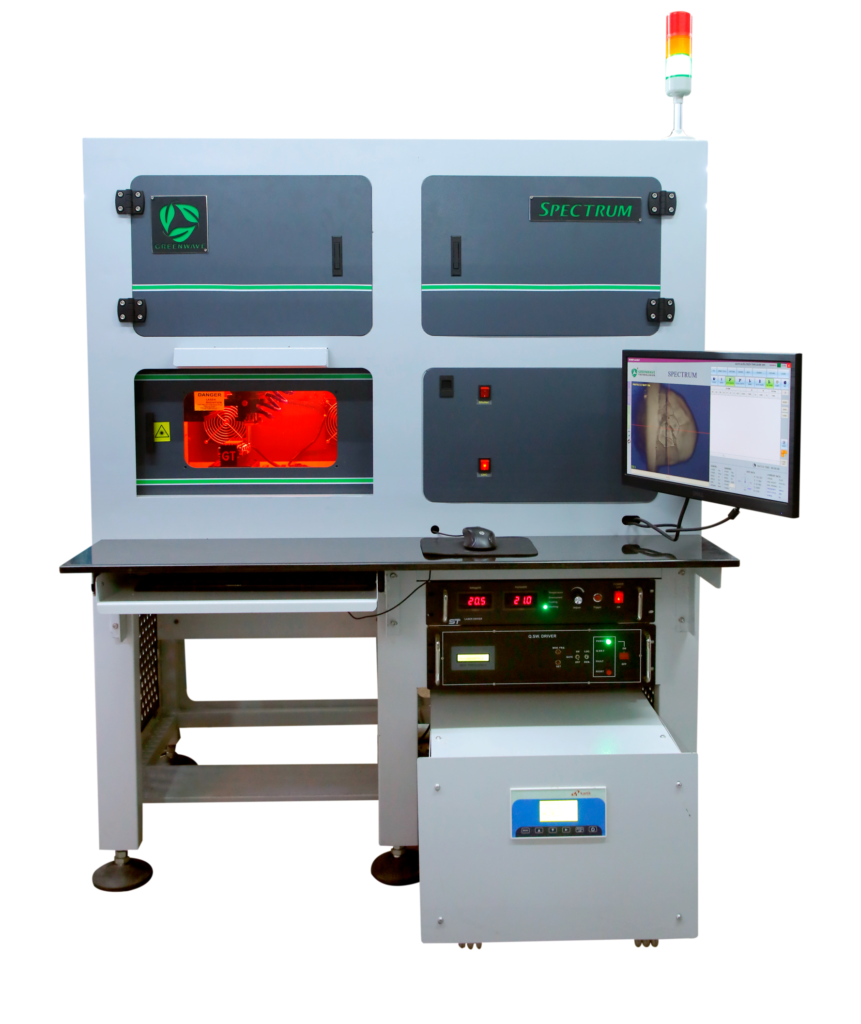

Spectrum

Spectrum model is a first choice of customer in a category of Green Lasers because of its unbeatable features like higher production with less weight loss & smooth surface. Greenwave spectrum Family is happily growing with more than 250 major to minor Diamond Sawing units. This model is available with Sawing, PIE Sawing, Multi Sawing, Mac-Pie Sawing, Polki Sawing, Slice Cutting with easy and smart Software, smooth cutting surface and Low weight loss for Real Diamonds as well as for Lab Grown Diamonds.

Laser Laser Laser

Wavelenght

532nm

Output Power @ 7.5 KHz, (Watts)

16w

Transverse Mode

TEMoo

Beam Diameter, (mm)

0.6

Beam Quality(M2)

<1.2

Pulse Repetition Frequency (PRF), KHz

1-20

Pulse width @ 7-10 KHz, ns

70

Pulse Stability @ 10 KHz (RMS)

3

Polarozation

Liner (Vertical)

Output Stability (% Over 8 hrs)

1

Working Temp(°C)

25

CNC System CNC System CNC System

Axis Travel

135mm*135mm*75mm

Resolution

1 Micron or better

Accuracy

2 Micron/25mm

Repeatability

2 Micron/25 mm bi directional

Drive

Servo Drive with Encoder

Mechanical Mechanical Mechanical

Dimensions

1270 mm* 615 mm* 1480 mm

Electrical Requirement

Electrical

AC 208-230 V, 60 Hz, 5 AMPS.

Chiller Chiller Chiller

Chiller

No Requirement of External Chiller.
