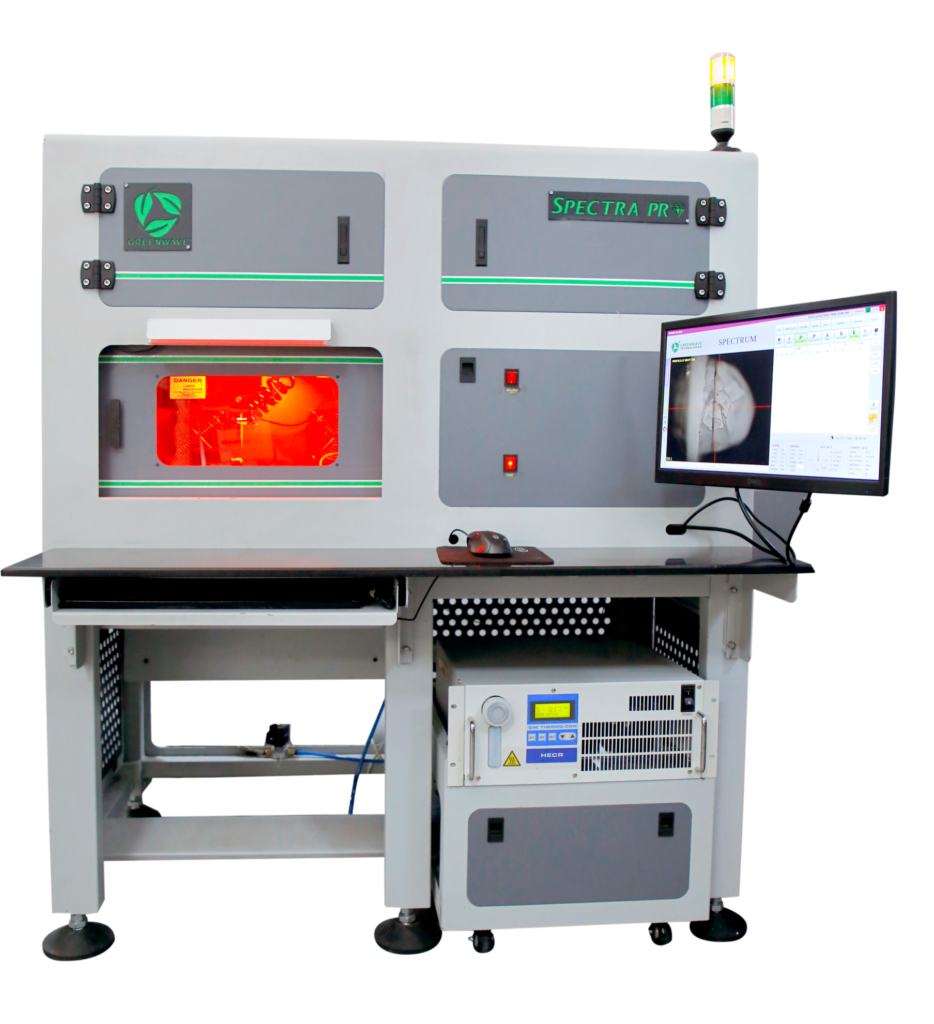

Spectra Pro

Greenwave technologies had introduced First Successful high watt fiber laser for diamond sawing to diamond industry, Spectra Pro model is available with End Pump Green Fiber Laser. Greenwave Technologies is No. 1 Green Fiber Laser seller in Diamond Industries. More than 60 happy customers are using this model in India as well as all over the World since 2016. This model is available with Sawing, PIE Sawing, Multi Sawing, Mac-Pie, Polki Sawing, Slice Cutting with easy and smart Software, smooth cutting surface and Low weight loss for Real Diamonds as well as for Lab Grown Diamonds. This machine has almost 70% Less Power consumption compared to conventional Green Lasers.

Laser Laser Laser

Wavelength

532nm

Output Power @ 7.5 KHz, (Watts)

20 W

Transverse Mode

TEMoo

Beam Diameter, (mm)

0.4

Beam Quality(M2)

<1.2

Pulse Repetition Frequency (PRF), KHz

1-20

Pulsewidth @ 7-10 KHz, ns

70

Pulse Stability @ 10 KHz (RMS)

3

Polarization

Liner (Vertical)

Output Stability, (% Over 8 hrs)

1

Working Temp(°C)

20

CNC System

Axis Travel

135mm*135mm*75mm

Resolution

1 Micron or better

Accuracy

2 Micron/25mm

Repeatability

2 Micron/25 mm bi directional

Drive

Servo Drive with Encoder.

Mechanical

Dimensions

1270 mm* 620 mm* 1380mm

Electrical Requirement

Electrical

AC 208-230 V, 60 Hz, 5 AMPS.

Chiller

Chiller

No Requirement of External Chiller.
