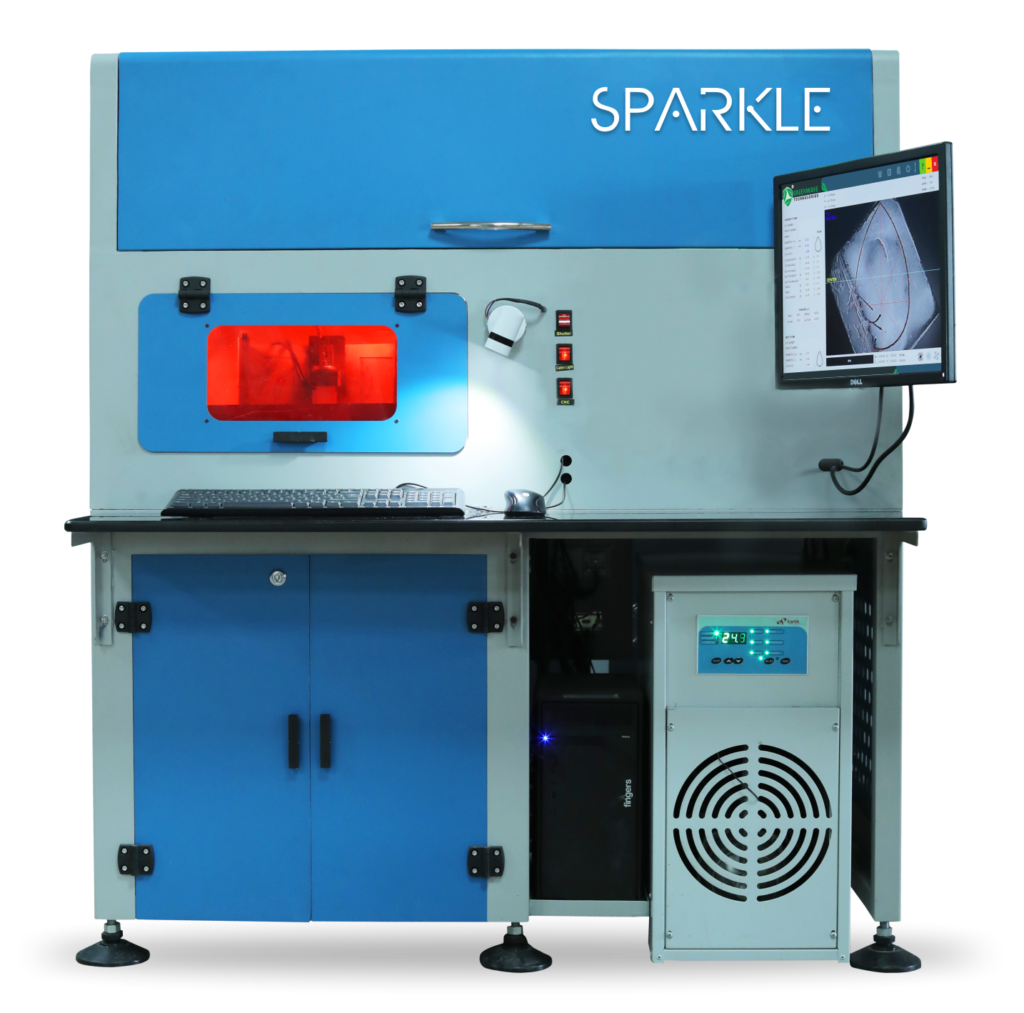

Sparkle – Fancy 4P/Facet

Sparkle Model is available with IR Galvo to cut Fancy 4P shapes as well as Facet (Diamond Blocking). More than 42 Shape cutting facility is available with Sparkle Fancy 4P. Sparkle Facet model is also available with more than 42 shapes blocking facility from 2 block to 56 block cutting.

Laser Laser Laser

Laser

DPSS (ND:YAG Diode Pumped)

Central Emmision Wavelenght

1064nm

Transverse Mode

TEMoo

Q-Switched Output Power

24 Watt @ 10 KHz

Pulse to Pulse Stability

(% rms)< 1.6 % 6 KHz

Beam Polarozation

Linear

Beam Pointing Stability

15u Red

Pulse Repetition Rate

1 to 20 KHz

Laser Class

IV

CNC System CNC System CNC System

Axis Travel

130mm*130mm*70mm

Resolution

4000 Steps/mm

Accuracy

2 Micron

Repeatability

5 Micron/25 mm Bidirectional

Straightnss & Flatenss of Travel

5 Micron/25mm

Drive

AC Servo

PC Specification PC Specification PC Specification

Specification

Intel 4th Generation, 17″ LED Screen, I3 Processor OR Higher Configuration

Electrical Electrical Electrical

Power Consumption

1, 230 Volts AC, 12 Amps

Temperature Temperature Temperature

Operating Temperature

18 to 30’C

Chiller Chiller Chiller

Cooling Capacity

1200 Watt

Power Consumption

1, 230 Volts, 8 Amps

Machine Dimension Machine Dimension Machine Dimension

Length * Width * Height

54.5″ x 26″ x 58″

Weight

~450 to 480 KG
